Are bicycle tyre tests lying to you? Rethinking rolling resistance and drum resting

In the quest for developing the fastest tyre, rolling resistance is one of the most talked-about, and misunderstood, metrics in cycling. At the root of this obsession is a deceptively simple question: which tyre is fastest? More specifically, how much force is required to roll a tyre over a surface?

The answer lies in rolling resistance, or more precisely, the coefficient of rolling resistance (Crr), which is a complex measure influenced by tyre pressure, speed, road texture, rubber compound, rider weight and more.

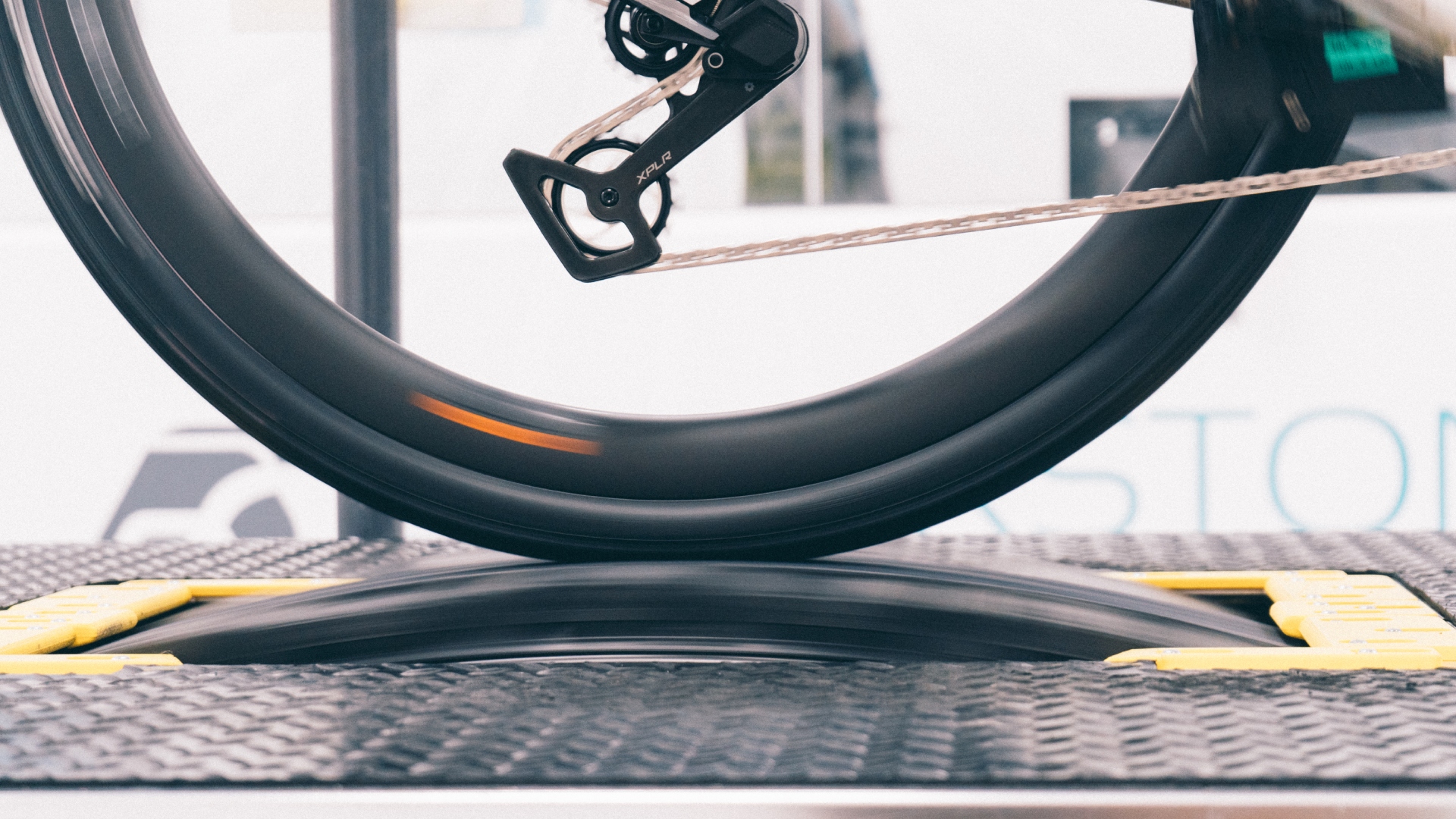

Despite advances in technology, the cycling industry continues to measure rolling resistance the same way it has for decades now: the steel drum test. This approach involves spinning a wheel and tyre against a smooth steel cylinder while measuring the power required to keep it moving. It’s a controlled, repeatable way to quantify one key source of energy loss caused by the deformation of the tyre casing, known as hysteresis loss.

On actual, paved roads (not to mention unpaved) things get a lot more complex. A steel drum can measure hysteresis, but it does not reflect another major aspect of rolling resistance, called impedance or suspension losses. In the words of Silca’s Josh Poertner, these are “the losses due to the bouncing, jostling, and vibrational losses introduced into the rest of the bicycle/rider system by road vibrations.”

Poertner, who has worked extensively with World Tour teams to help them better understand how to optimise their equipment, explains these two considerations thusly: “If you plot Crr on a drum test, you will find that Crr decreases asymptotically as pressure increases. However, if you plot Crr in field testing, you see that there are two distinct regimes of Crr, the first one dominated by casing losses, and the second one dominated by impedance losses. Drum testing is only useful in predicting the regime dominated by casing losses.”

An additional issue with drum testing is that the size of the drum skews how different tyres perform. A small diameter drum measures more hysteresis loss on tyres at lower pressures or with more tread simply as a result of the drum shape, which digs into the tyre in a way that actual riding surfaces do not. Roads are quite flat, comparatively, and a roller drum would need to be enormous in order to accurately reflect this.

This style of testing also can be useful for making aerodynamic improvements to one’s setup, but the tough part is that it is often very rider and conditions specific. Like aerodynamic optimisation, what works for one person may or may not work for others. Also, gravel races do not have consistent surfaces—some of the race might be paved while other parts might be extremely rugged. Riders have to decide which part of the course to prioritise their equipment for, making educated guesses as to what tyre and tyre pressure will provide the best option for their hoped-for racing or riding outcomes.

An ideal scenario, with the ultimate control over testing variables, would be to bring an outdoor surface indoors. This is theoretically feasible, but would take immense resources in order to be realised. Something similar is being done in the Catesby Tunnel in the Northamptonshire countryside in England for testing aerodynamics (more about that here). Maybe if we all write the Catesby Tunnel Test Facility a letter they’d be willing to surface one half of the road with gravel from Emporia, Kansas? I’ll be the first one in line if it happens!

While roller drum tests offer a convenient way to compare tyres in controlled settings, they only tell part of the story. Real-world methods like the Chung Method or roll-down testing can get us closer to the truth, even if they come with their own challenges. There’s no perfect solution just yet. But as our understanding (and our roads) evolve, so too will the ways we measure what really makes a tyre fast.
